Autel AC Lite Home 40A EV Charger | 9.6kW Level 2 Home Charger
Autel AC Lite Home 40A EV Charger | 9.6kW Level 2 Home Charger
Couldn't load pickup availability

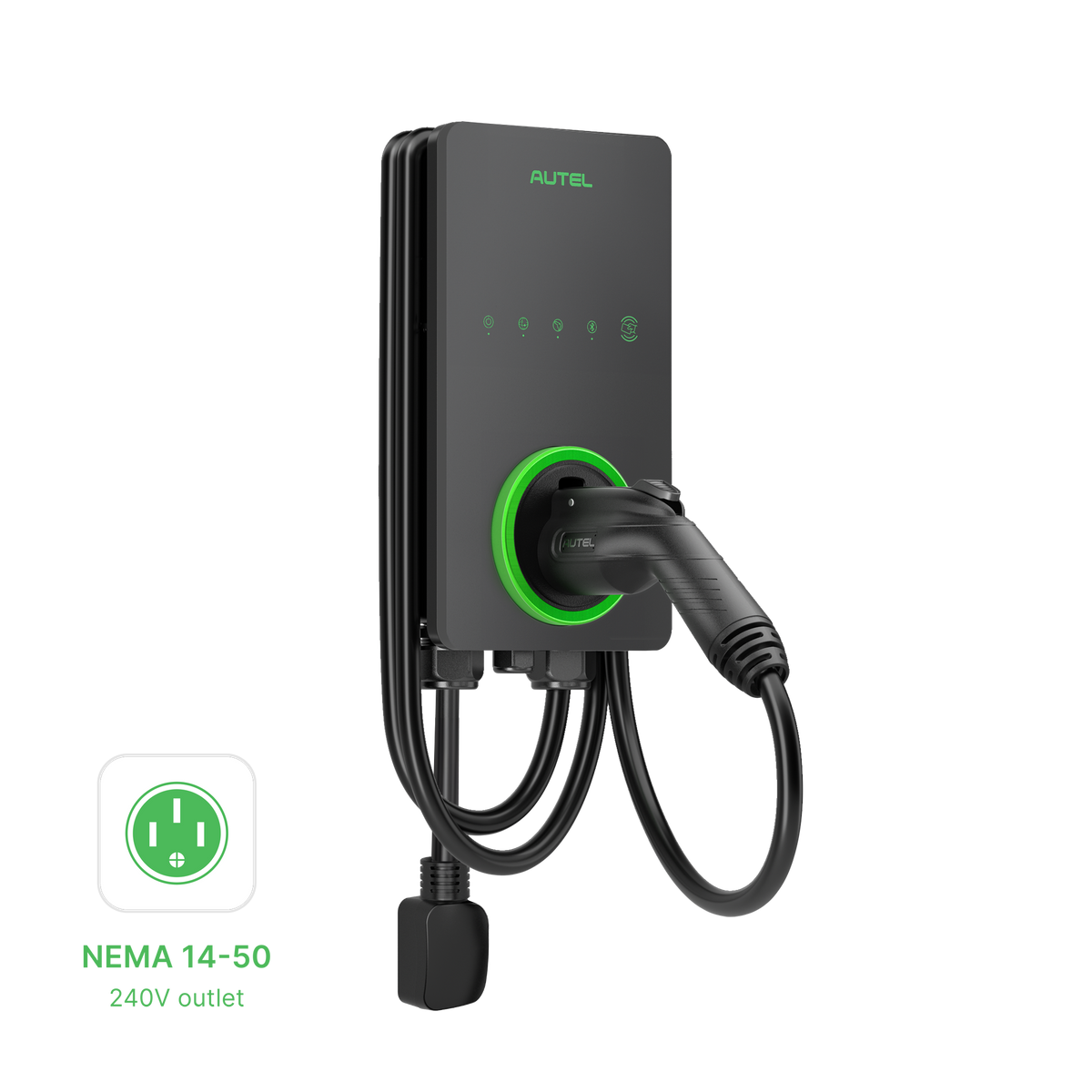

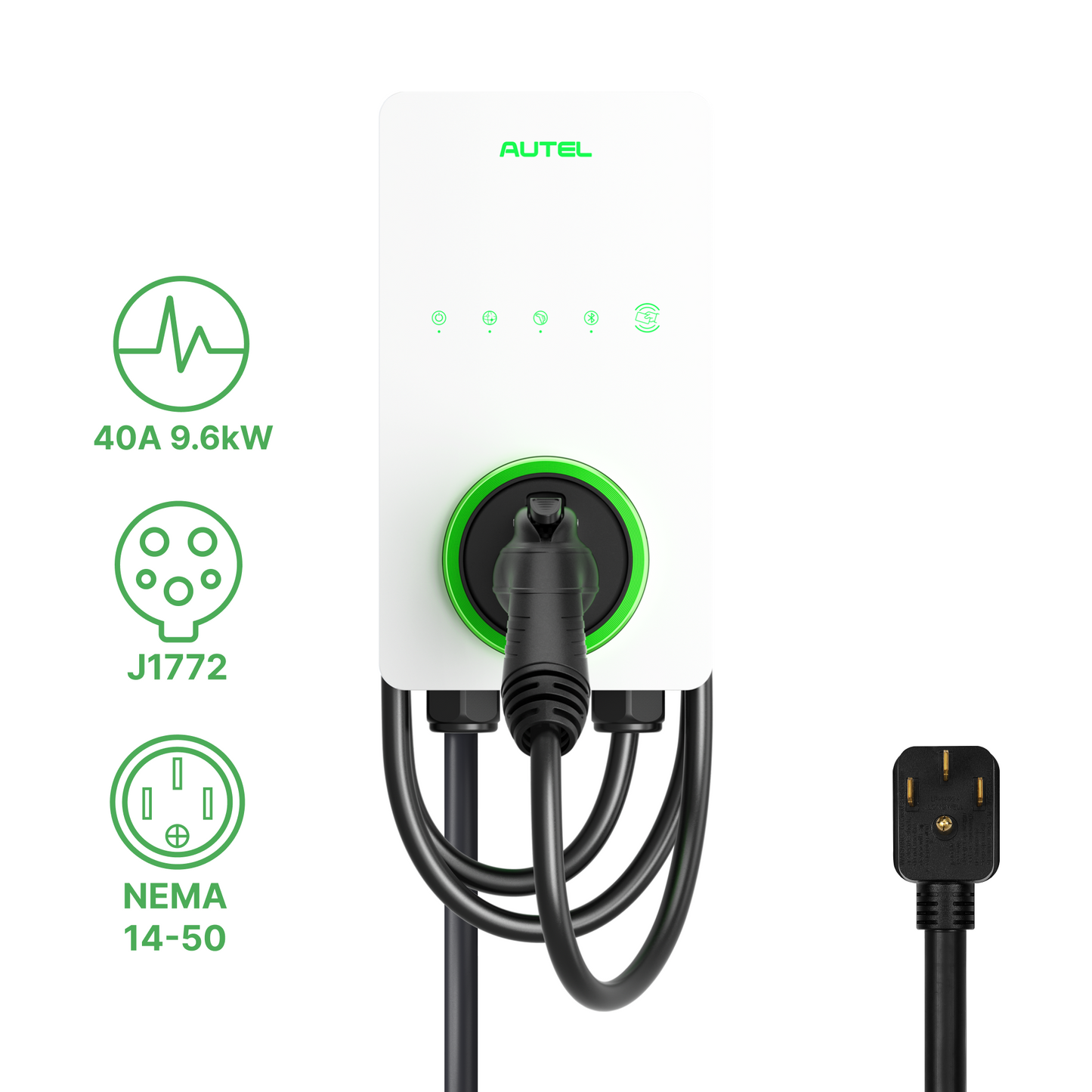

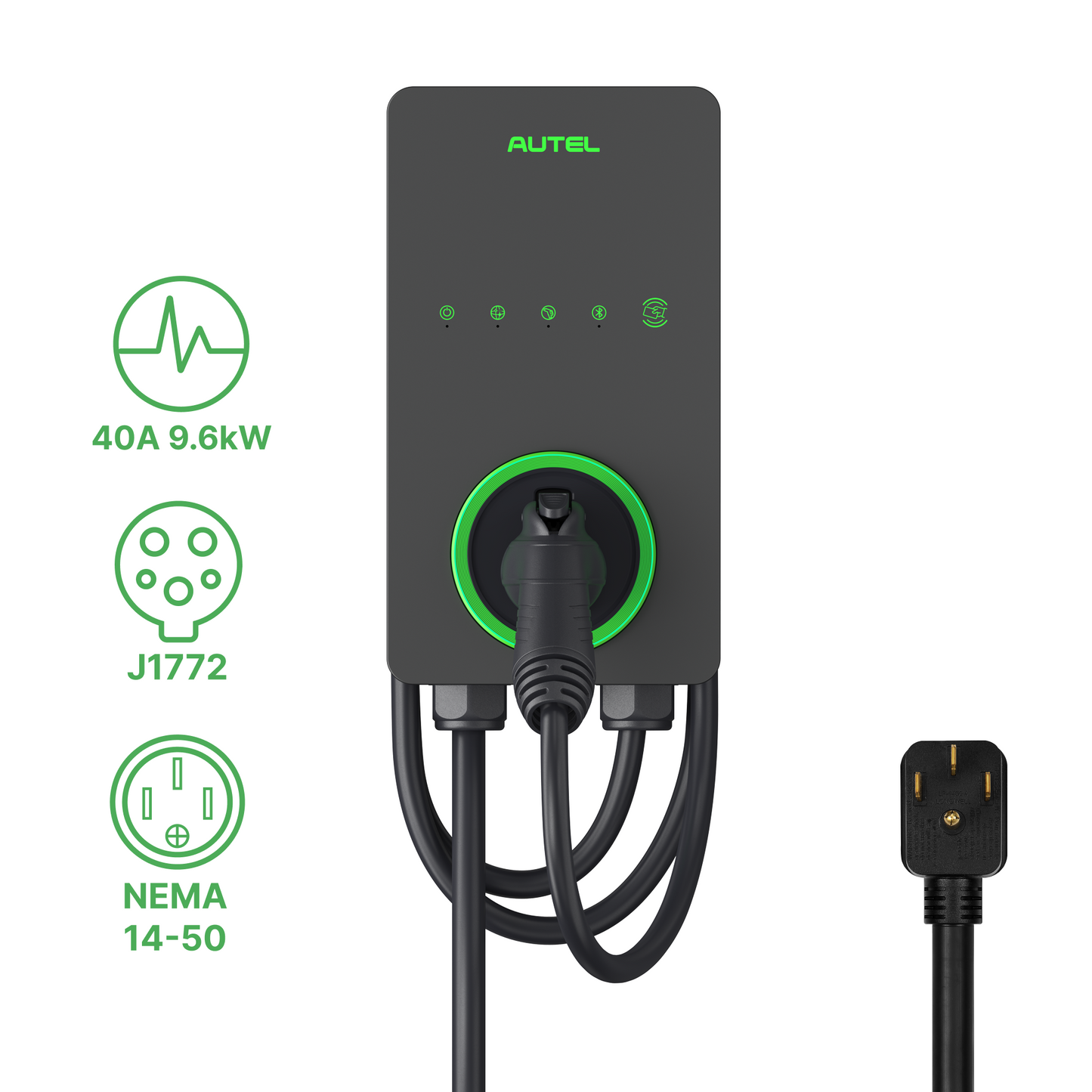

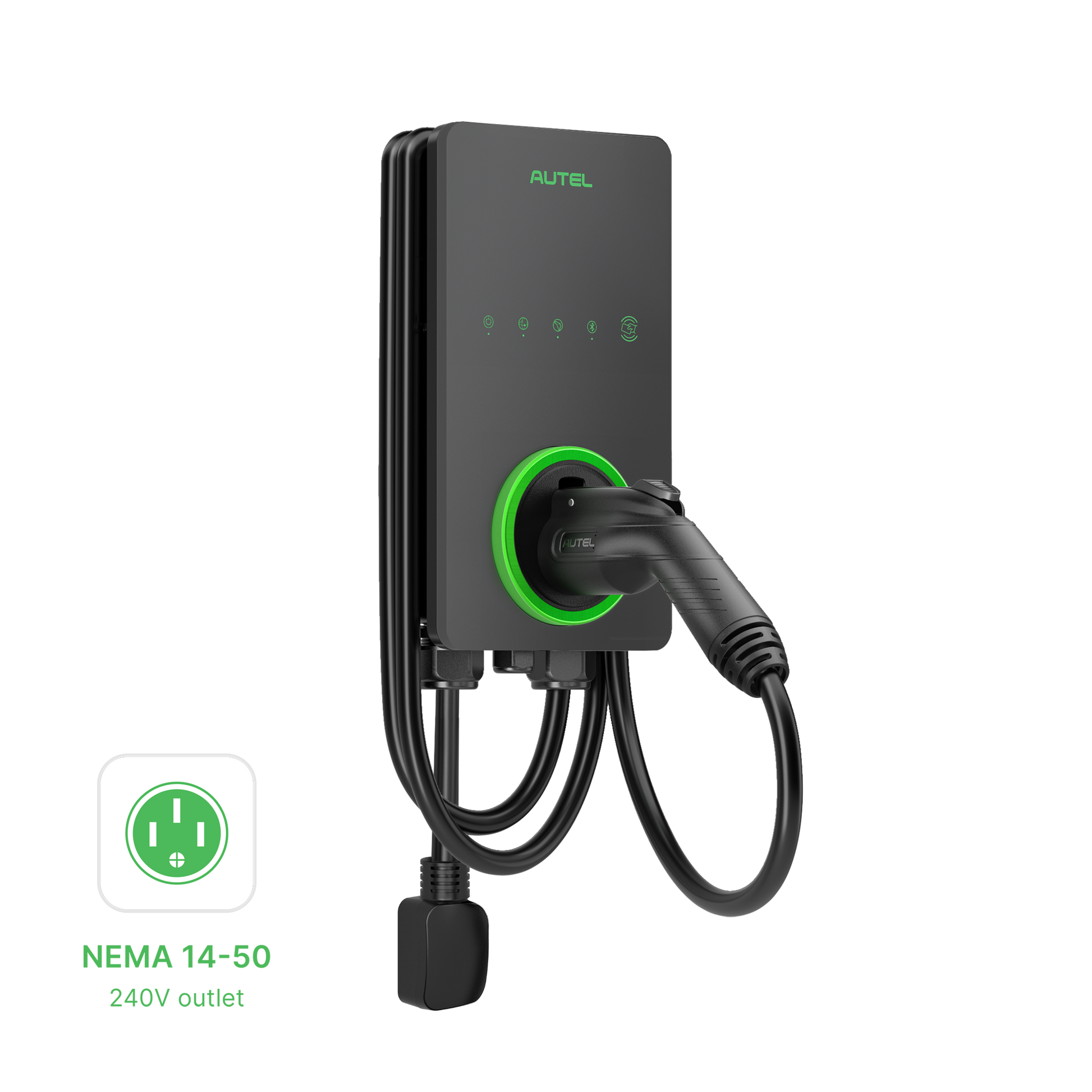

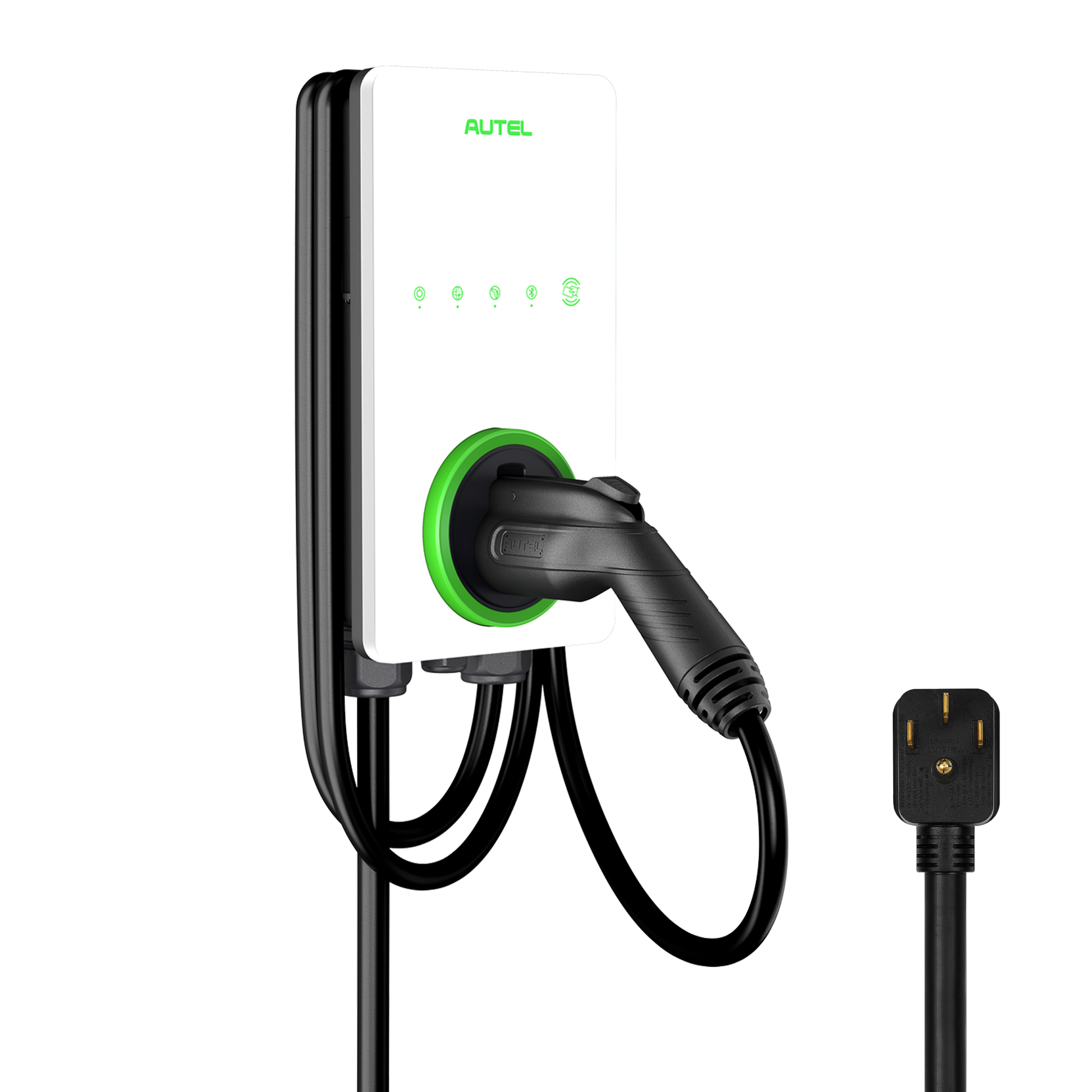

Autel AC Lite Home 40A EV Charger is a Level 2 home EV charger with a standard U.S. Level 2 connector, built for fast overnight charging at home. At 40A it delivers about 9.6 kW, which is roughly 28–36 miles of range for every hour plugged in, so most drivers wake up to a full battery.
Autel AC Lite Home 40A EV Charger: Key Specs
| Charging level | Level 2 (240V AC) |
| Max output | Up to 40A |
| Approx. power | About 9.6 kW at 40A |
| Range added | Roughly 28–36 miles per hour of charging* |
| Connector | Standard U.S. Level 2 plug (J1772 or NACS; confirm on the listing) |
| Installation | NEMA 14-50 plug-in or hardwired, depending on version (50A breaker for 40A) |
| Connectivity | Bluetooth, Wi-Fi, Ethernet, CAN and RS485 |
| App control | Schedule and monitor charging from the Autel app |
| Colors | Dark Gray or White |
*Range per hour depends on your vehicle's efficiency and onboard charger limit.
Why Choose This Charger
- Much faster than a wall outlet: Level 2 charging is several times faster than Level 1 (120V), which adds only about 3–5 miles per hour.
- Standard U.S. connector: plugs straight into compatible vehicles with no adapter.
- Flexible install: choose a plug-in or hardwired setup to match your garage.
- Connectivity: Bluetooth, Wi-Fi, Ethernet, CAN and RS485
- App control: Schedule and monitor charging from the Autel app
- Colors: Dark Gray or White
Compatible Vehicles
Every EV sold in the U.S. can charge on Level 2: J1772-port EVs (Chevy, Ford, Hyundai, Kia, Nissan, Rivian, VW and more) plug in directly with a J1772 connector, while Teslas and 2025-and-newer NACS EVs use a NACS connector or an adapter. Check the connector shown on this listing before you order. Always check your vehicle's maximum AC charging rate; a car with an 11 kW onboard charger will not charge faster than that, even on a higher-rated charger.
Installation Requirements
For full 40A charging the charger needs a dedicated 240V circuit with a 50A double-pole breaker (125% of the charging current). A plug-in version uses a NEMA 14-50 outlet on a 50A circuit with 6 AWG copper wire, and recent codes generally require GFCI protection for garage and outdoor 240V outlets. See our NEMA 14-50 outlet guide, and have a licensed electrician check panel capacity and permits.
New to home charging? Read our Level 2 EV charger installation guide and typical installation costs.
Frequently Asked Questions
How fast does the Autel AC Lite Home 40A EV Charger charge?
At 40A and 240V it delivers about 9.6 kW, roughly 28–36 miles of range per hour, depending on your EV.
What breaker size do I need?
A 50A double-pole breaker for 40A charging. Your electrician will confirm wire size and GFCI requirements.
Will it work with a Tesla?
Yes. Pick the NACS version to plug straight in, or use the J1772 adapter that comes with most Teslas.
Can it be installed outdoors?
Check the product's enclosure rating and installation manual before mounting it outside, and use a weatherproof cover for outdoor outlets.
Related Guides
Compare more options in our EV Chargers for Home collection.
