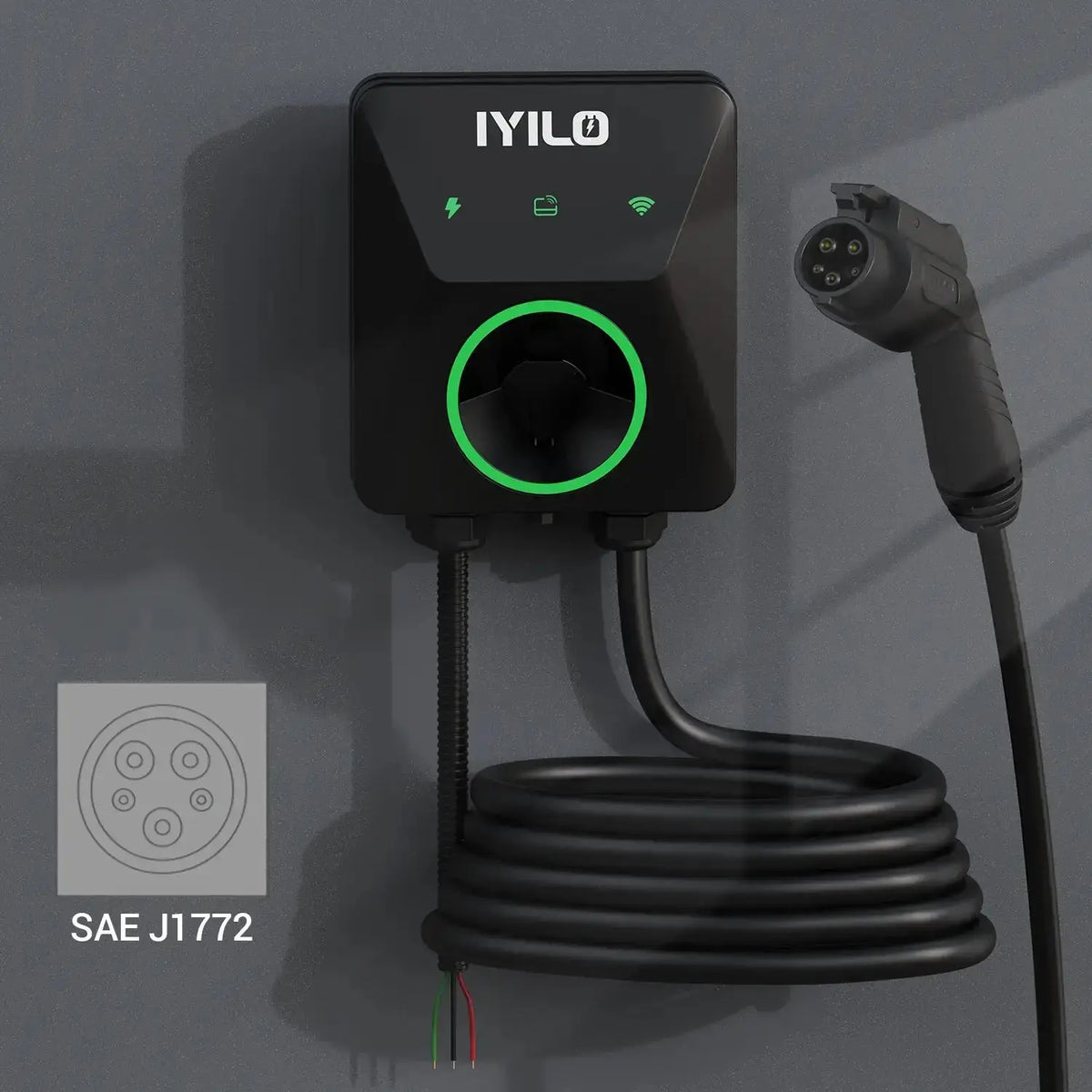

IYILO 48A Level 2 EV Charger | J1772 Hardwired Home Charging Station
IYILO 48A Level 2 EV Charger | J1772 Hardwired Home Charging Station
Couldn't load pickup availability

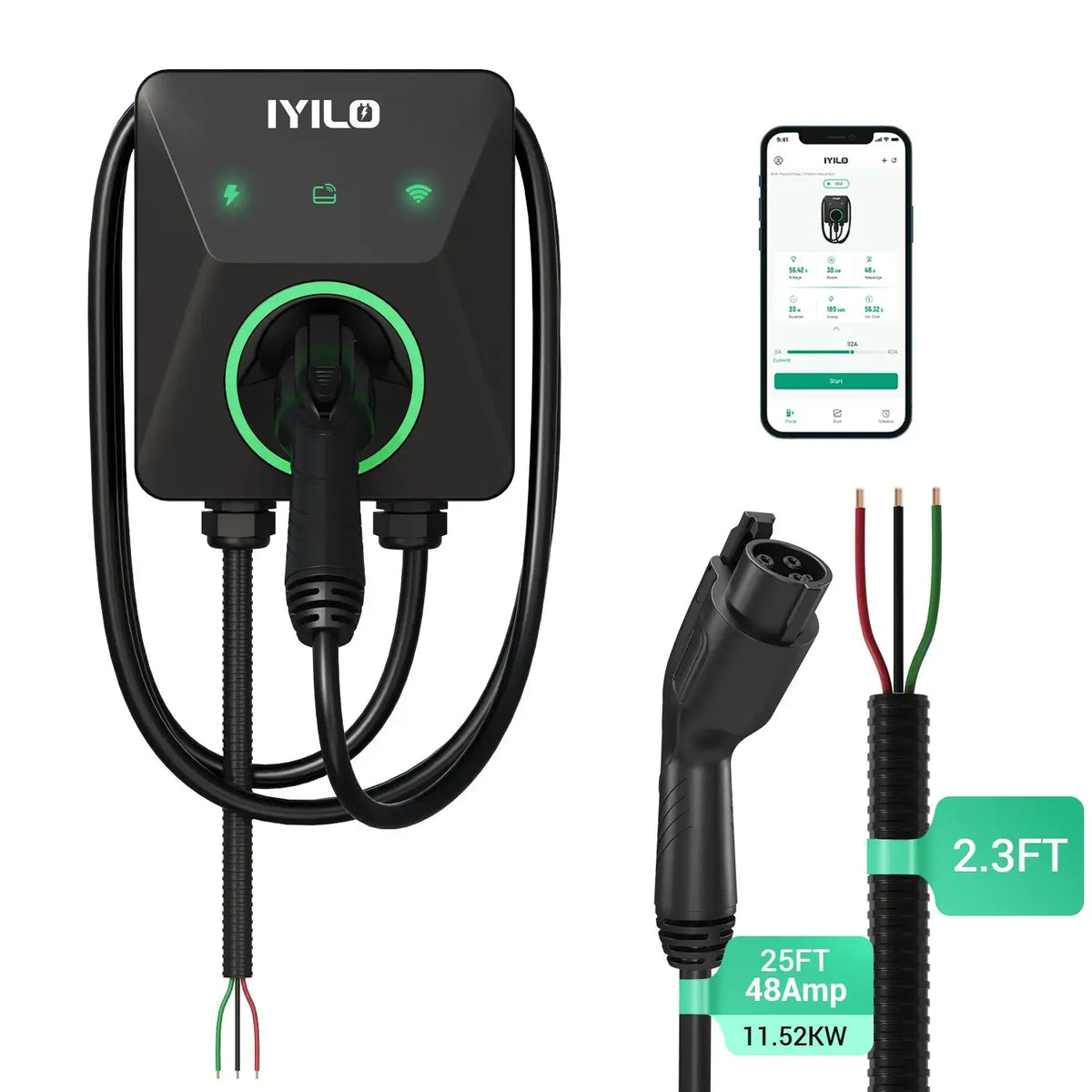

IYILO 48A Level 2 EV Charger (J1772, Hardwired) is a Level 2 home EV charger with a J1772 connector, built for fast overnight charging at home. At 48A it delivers about 11.5 kW, which is roughly 34–43 miles of range for every hour plugged in, so most drivers wake up to a full battery.
IYILO 48A Level 2 EV Charger (J1772, Hardwired): Key Specs
| Charging level | Level 2 (240V AC) |
| Max output | Up to 48A |
| Approx. power | About 11.5 kW at 48A |
| Range added | Roughly 34–43 miles per hour of charging* |
| Connector | SAE J1772, the standard Level 2 connector for most U.S. EVs |

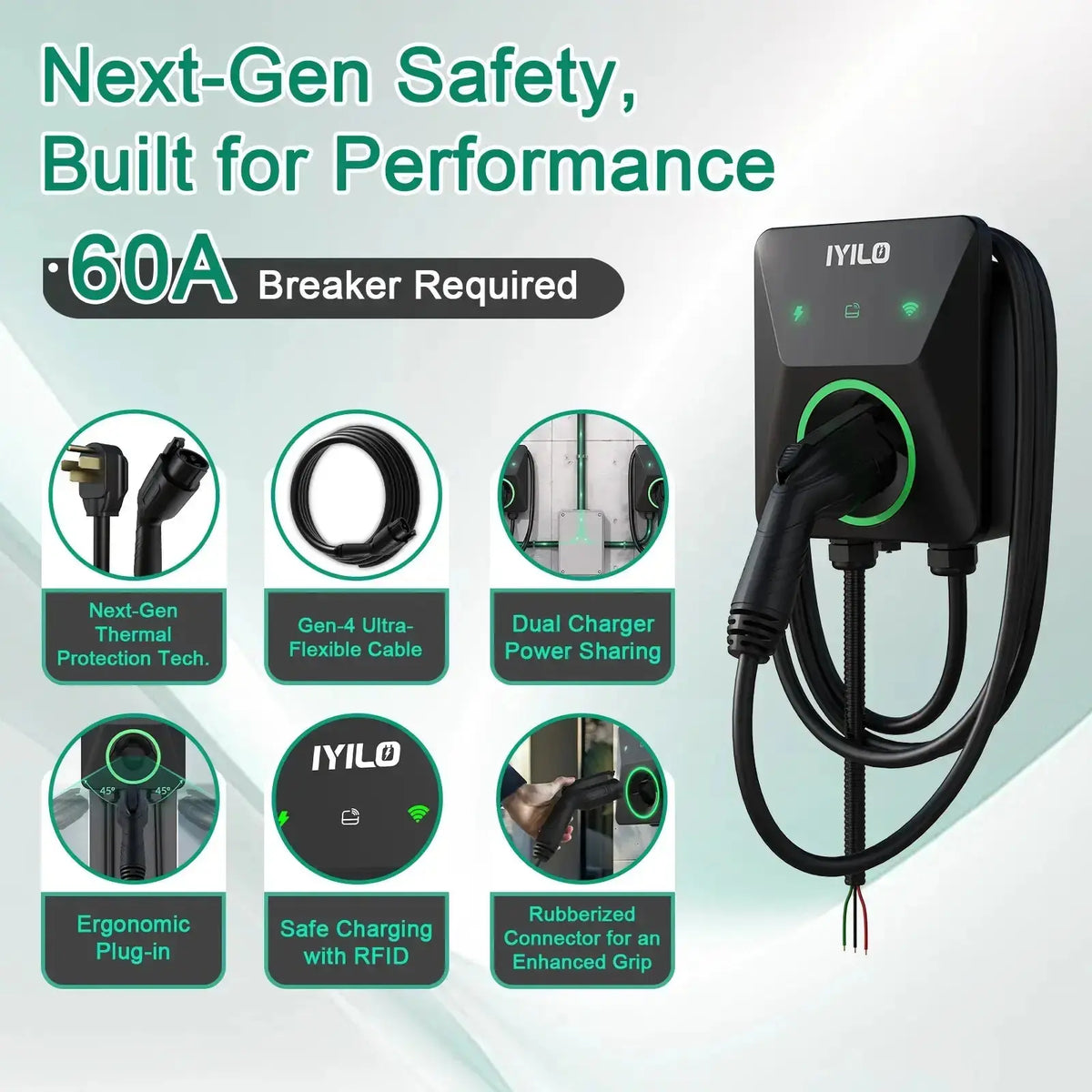

| Installation | Hardwired to a dedicated 240V circuit (60A double-pole breaker) |
*Range per hour depends on your vehicle's efficiency and onboard charger limit.
Why Choose This Charger
- Much faster than a wall outlet: Level 2 charging is several times faster than Level 1 (120V), which adds only about 3–5 miles per hour.
- J1772 connector: plugs straight into compatible vehicles with no adapter.
- Permanent hardwired install: clean, permanent setup with full rated current.
- Warranty options: multiple warranty options are available by variant.
Compatible Vehicles

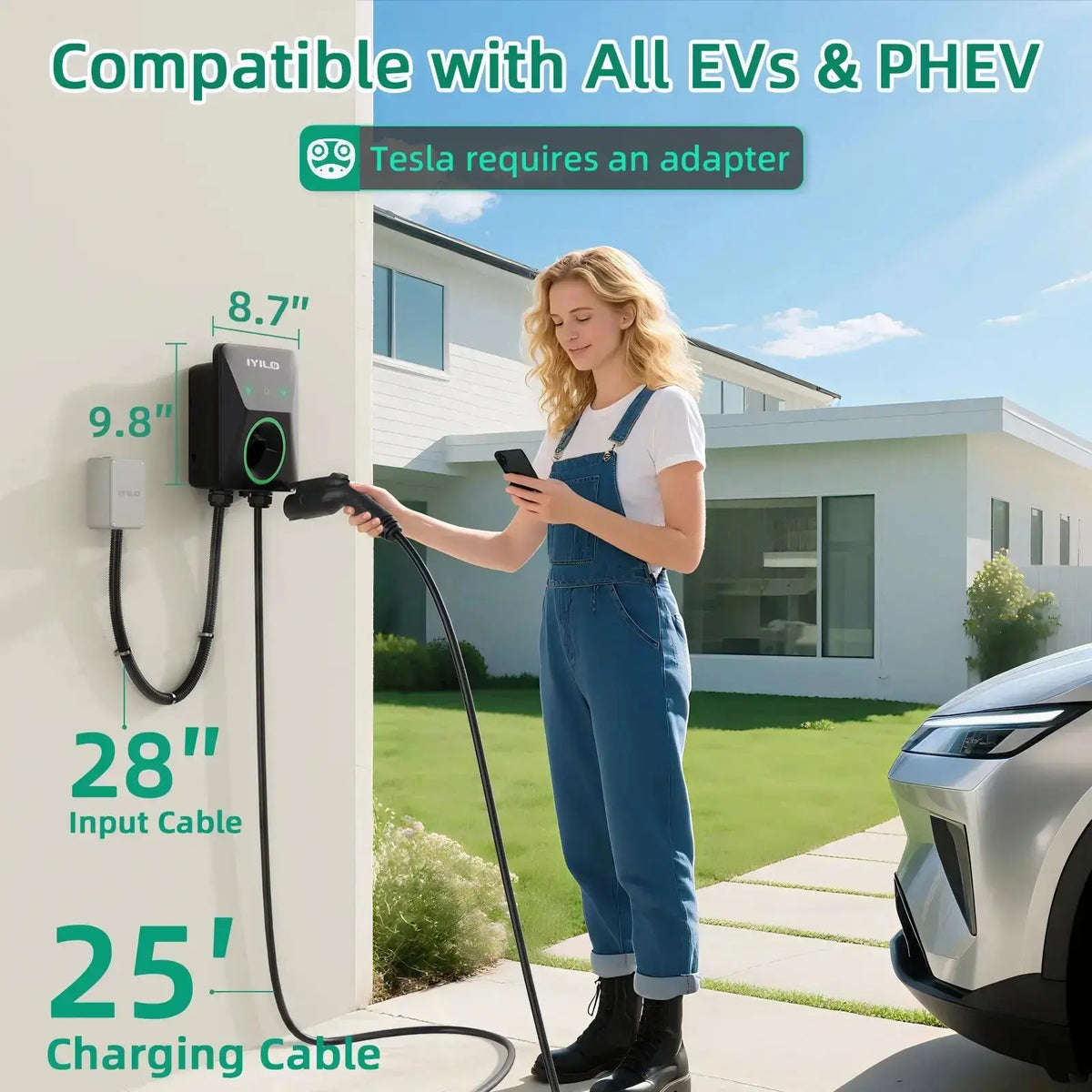

Most non-Tesla EVs and plug-in hybrids sold in the U.S. with a J1772 port (for example Chevy Bolt and Equinox EV, Ford Mustang Mach-E, Hyundai Ioniq 5, Kia EV6, Nissan Leaf, Rivian, VW ID.4). Teslas can use it with the J1772 adapter that comes with most Teslas. Always check your vehicle's maximum AC charging rate; a car with an 11 kW onboard charger will not charge faster than that, even on a higher-rated charger.
Installation Requirements
This charger is hardwired, so it connects directly to a dedicated 240V circuit. For 48A charging, EV charging rules call for a 60A breaker (125% of the charging current) and correctly sized copper wire. Hardwiring avoids outlet wear, allows the full 48A, and suits indoor or outdoor garage installs. Have a licensed electrician check your panel capacity, pull any required permit and install it.
New to home charging? Read our Level 2 EV charger installation guide and typical installation costs.
Frequently Asked Questions
How fast does the IYILO 48A Level 2 EV Charger (J1772, Hardwired) charge?
At 48A and 240V it delivers about 11.5 kW, roughly 34–43 miles of range per hour, depending on your EV.
What breaker size do I need?
A 60A double-pole breaker for 48A charging. Your electrician will confirm wire size and GFCI requirements.
Will it work with a Tesla?
Yes, using the J1772 adapter that comes with most new Teslas.
Can it be installed outdoors?
Check the product's enclosure rating and installation manual before mounting it outside, and use a weatherproof cover for outdoor outlets.
Related Guides
Compare more options in our EV Chargers for Home collection.
