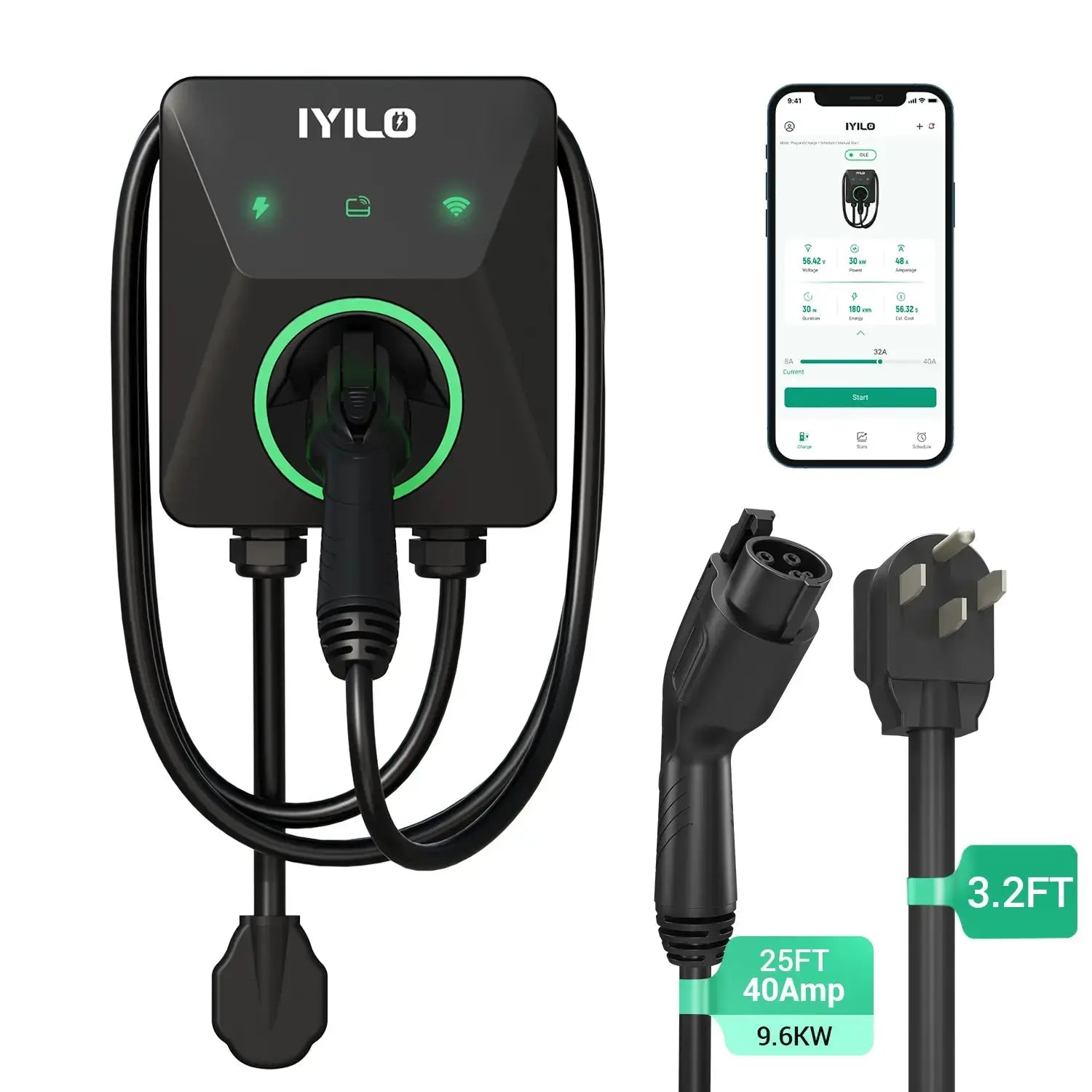

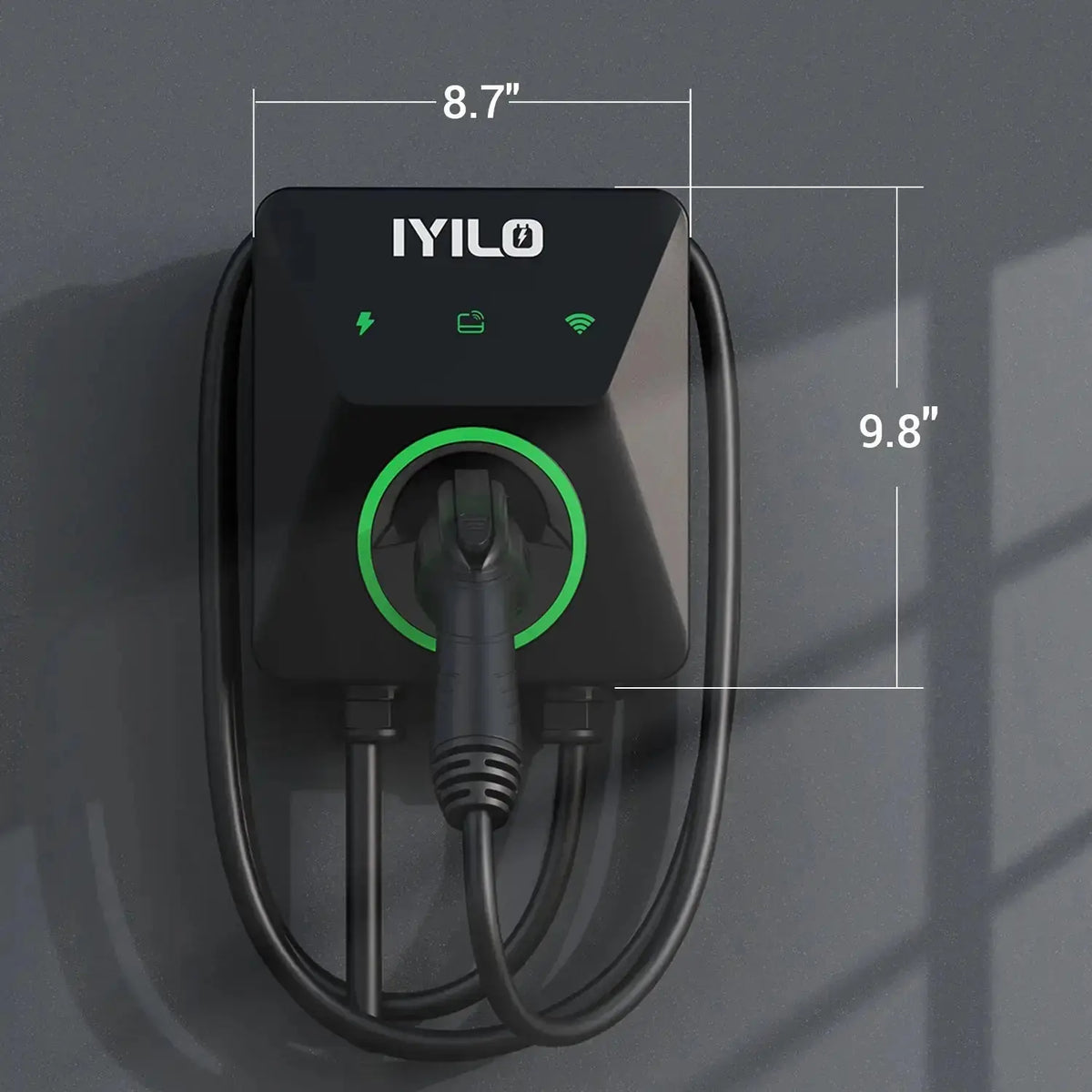

IYILO 40A Level 2 EV Charger (J1772, NEMA 14-50) is a Level 2 home EV charger with a J1772 connector, built for fast overnight charging at home. At 40A it delivers about 9.6 kW, which is roughly 28–36 miles of range for every hour plugged in, so most drivers wake up to a full battery.

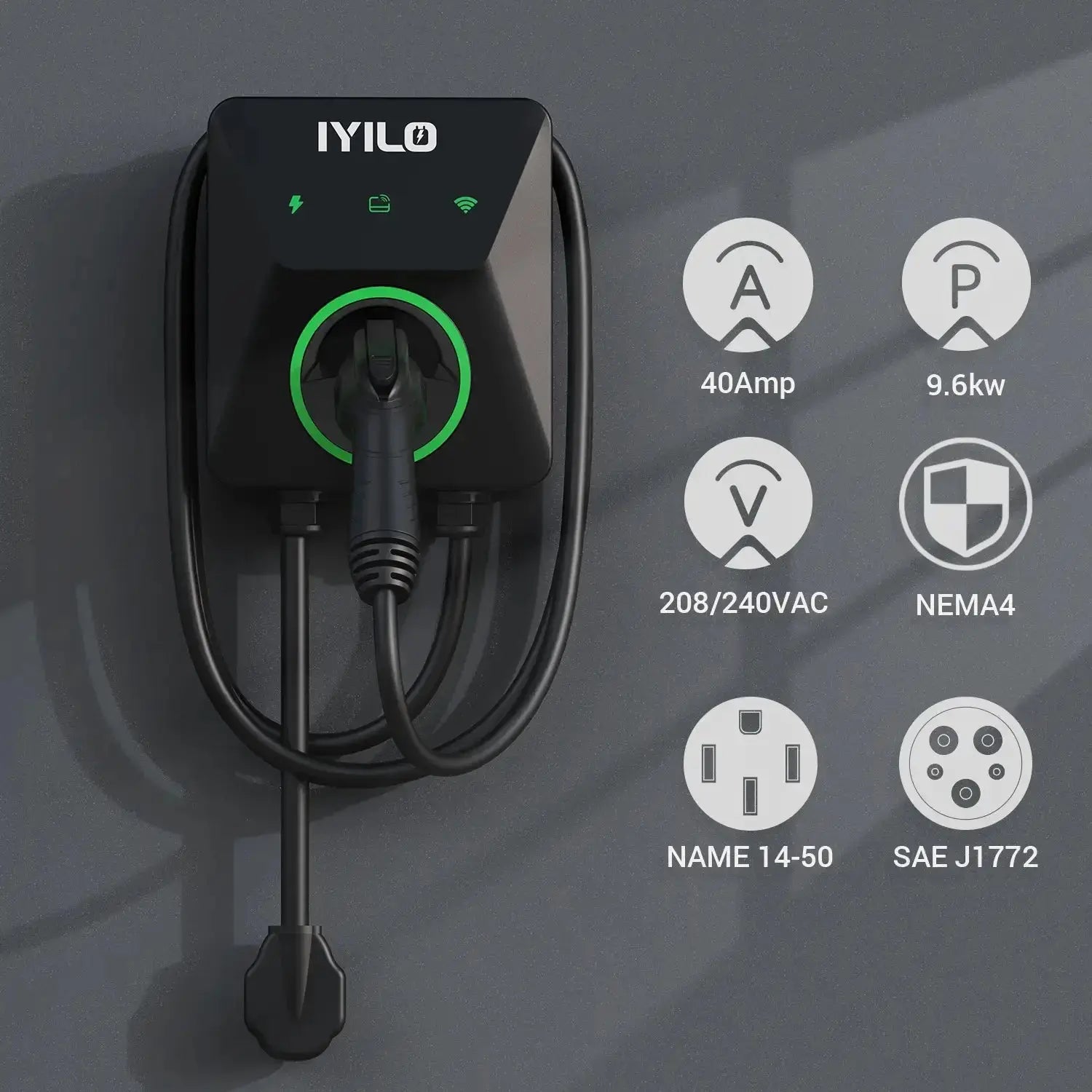

IYILO 40A Level 2 EV Charger (J1772, NEMA 14-50): Key Specs
| Charging level |
Level 2 (240V AC) |
| Max output |
Up to 40A |
| Approx. power |
About 9.6 kW at 40A |
| Range added |
Roughly 28–36 miles per hour of charging* |
| Connector |
SAE J1772, the standard Level 2 connector for most U.S. EVs |
| Installation |
Plugs into a NEMA 14-50 outlet on a dedicated 240V, 50A circuit |
*Range per hour depends on your vehicle's efficiency and onboard charger limit.
Why Choose This Charger
-
Much faster than a wall outlet: Level 2 charging is several times faster than Level 1 (120V), which adds only about 3–5 miles per hour.
-
J1772 connector: plugs straight into compatible vehicles with no adapter.
-
Plug-in convenience: no hardwiring needed if you already have a NEMA 14-50 outlet, and easy to take with you when you move.
-
Warranty options: multiple warranty options are available by variant.
Compatible Vehicles
Most non-Tesla EVs and plug-in hybrids sold in the U.S. with a J1772 port (for example Chevy Bolt and Equinox EV, Ford Mustang Mach-E, Hyundai Ioniq 5, Kia EV6, Nissan Leaf, Rivian, VW ID.4). Teslas can use it with the J1772 adapter that comes with most Teslas. Always check your vehicle's maximum AC charging rate; a car with an 11 kW onboard charger will not charge faster than that, even on a higher-rated charger.
Installation Requirements

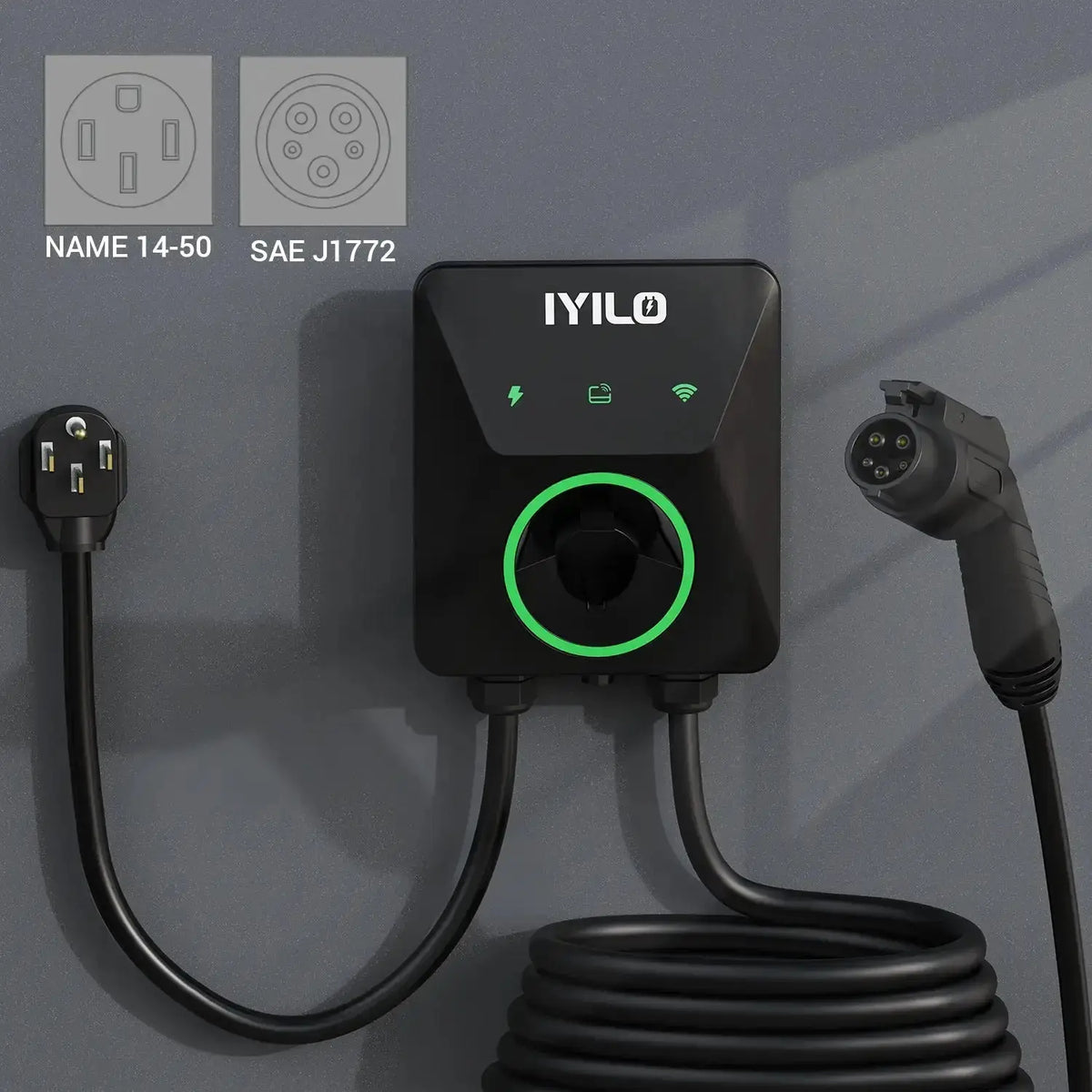

This charger plugs into a NEMA 14-50 outlet, the same 4-prong 240V outlet used for RVs. The outlet should be on a dedicated 50A circuit with 6 AWG copper wire, and recent electrical codes generally require GFCI protection for garage and outdoor 240V outlets. An industrial-grade 14-50 receptacle is recommended for daily EV use. See our NEMA 14-50 outlet guide for the full requirements.
New to home charging? Read our Level 2 EV charger installation guide and typical installation costs.
Frequently Asked Questions
How fast does the IYILO 40A Level 2 EV Charger (J1772, NEMA 14-50) charge?
At 40A and 240V it delivers about 9.6 kW, roughly 28–36 miles of range per hour, depending on your EV.
What breaker size do I need?
A 50A double-pole breaker for the NEMA 14-50 outlet, with charging set to 40A or less. Your electrician will confirm wire size and GFCI requirements.
Will it work with a Tesla?
Yes, using the J1772 adapter that comes with most new Teslas.
Can it be installed outdoors?
Check the product's enclosure rating and installation manual before mounting it outside, and use a weatherproof cover for outdoor outlets.
